Category: Dynamometer

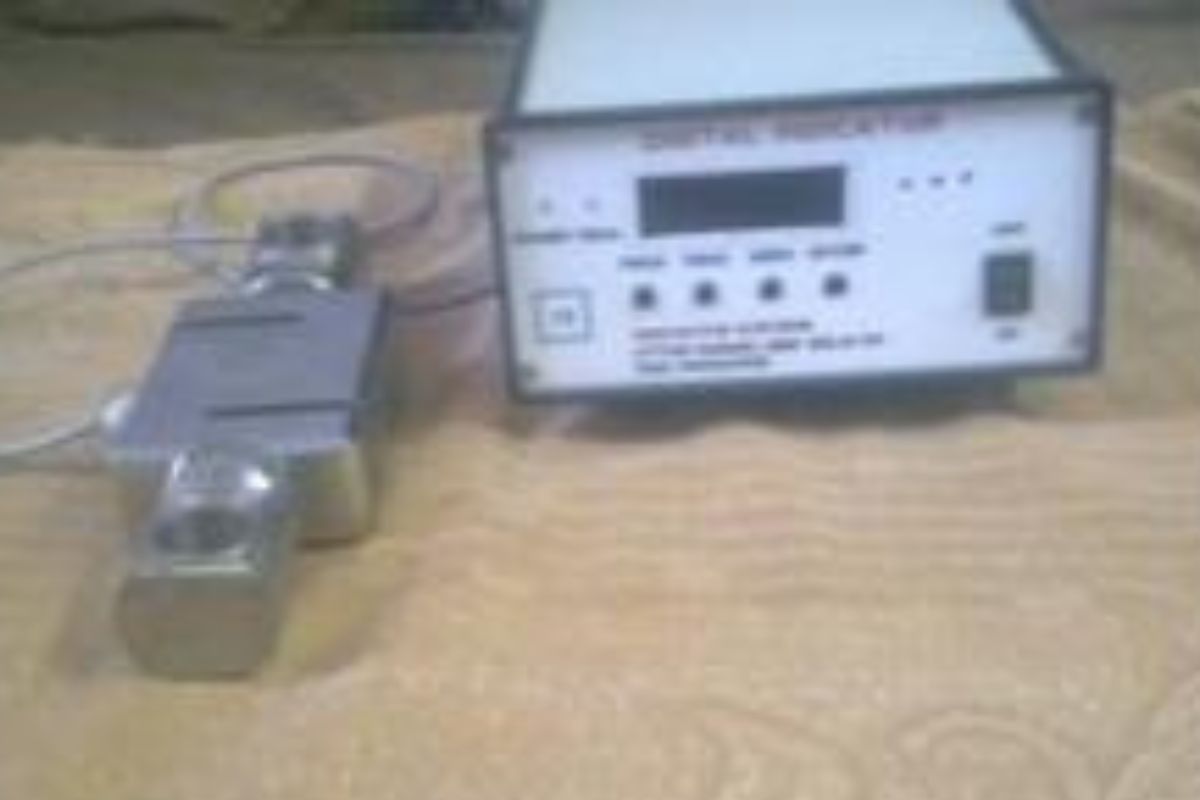

Digital Dynamometer

Backed by years of industry experience, we manufacture and supply a premium range of Digital Dynamometers designed for accurate measurement of force, torque, and load in automotive, textile, sugar, and various other industrial applications. Manufactured using high-quality components and advanced technology under the supervision of skilled professionals, these dynamometers deliver reliable performance and long service life. They are available at competitive prices to meet diverse customer requirements.

Key Features

  • Long service life
  • Accurate display of value
  • Excellent performance
  • User friendly interface
    • Enquiry Now

    Advanced Digital Force Measurement

    This Digital Dynamometer provides precise force measurement for both tension and compression applications, making it suitable for laboratory, industrial, and field use. With a 0.01 N resolution and ±0.5% reading accuracy, it delivers reliable results. Its microprocessor-based digital control ensures stable performance, while the built-in memory can store up to 500 test readings for convenient analysis and recordkeeping.

    Versatile and User-Friendly Design

    Constructed from lightweight aluminum alloy with an attractive grey and blue finish, this digital dynamometer combines durability with ease of use. It features interchangeable clamps for testing different specimens and supports both bench-mounted and handheld operation. The ability to accommodate customizable specimen sizes and the built-in peak hold function ensure accurate maximum force measurement across a wide range of applications.

    Easy Connectivity and Convenient Operation

    The digital dynamometer supports RS232 connectivity for seamless data transfer and analysis using the included Windows data acquisition software. Its backlit LCD display ensures clear visibility in various lighting conditions, while auto zero and overload alarm functions enhance accuracy and operational safety. With its compact design and 2.5 kg weight, the unit is easy to carry, install, and operate.

    Product Details:

    • Features Peak hold, Auto zero, Backlight Display, Overload Alarm
    • Temperature 10C 40C
    • Display Type High Brightness LCD Digital Display
    • Equipment Type Digital Dynamometer
    • Measuring Range 0 2000 N
    • Gas Pressure N/A (Not Applicable for this model)
    • Automation Grade Semi-Automatic

    Digital Dynamometer Quantity

    • Windows data acquisition software
    • Overload and over-voltage protection
    • CE & ISO certified
    • English
    • Inbuilt rechargeable battery, 6 hours backup
    • Aluminum Alloy
    • 1 Year
    • Stores up to 500 test results
    • Interchangeable clamps provided
    • Grey & Blue
    • 340 x 85 x 120 mm
    • Supplied with calibration certificate

    Digital Dynamometer Product Specifications

    • 220V AC, 50 Hz
    • Customizable as per application
    • 220V AC
    • RS232 Serial Port
    • 0.5 500 mm/min (variable)
    • Standard M10 Thread
    • 1
    • 0 2000 N
    • 0.01 N
    • Tension and Compression Force Measurement
    • 50 Hz
    • 2 ms
    • 0.5% of reading
    • 85% RH non-condensing
    • 100 mm
    • Force and Pull Testing
    • 2.5 kg
    • 40 mm
    • Peak hold, Auto zero, Backlight Display, Overload Alarm
    • Semi-Automatic
    • N/A (Not Applicable for this model)
    • 0 2000 N
    • 350 mm
    • Handheld/Bench Mount
    • 2000 N
    • High Brightness LCD Digital Display
    • 10C 40C
    • Digital Microprocessor Control
    • Digital Dynamometer
    • Windows data acquisition software
    • Overload and over-voltage protection
    • CE & ISO certified
    • English
    • Inbuilt rechargeable battery, 6 hours backup
    • Aluminum Alloy
    • 1 Year
    • Stores up to 500 test results
    • Interchangeable clamps provided
    • Grey & Blue
    • 340 x 85 x 120 mm
    • Supplied with calibration certificate

    FAQs of Digital Dynamometer:


    Q: How does the digital dynamometer store and manage test results?

    A: The digital dynamometer is equipped with an onboard memory that stores up to 500 individual test results, allowing users to retrieve and review previous measurements for data analysis and reporting purposes.


    Q: What is the process for calibrating the device and is a certificate provided?

    A: Each dynamometer is supplied with a calibration certificate, ensuring accuracy and compliance with standards. Calibration is conducted before delivery, and annual recalibrations are recommended for best results.


    Q: When should I recharge the inbuilt battery, and how long does it last?

    A: The rechargeable battery provides up to 6 hours of operation on a full charge. It is advisable to recharge the dynamometer when the battery indicator shows low power, or before extensive testing sessions.


    Q: Where can this dynamometer be used, considering its environmental limits?

    A: This instrument operates optimally at temperatures between 10C and 40C, with humidity not exceeding 85% (non-condensing). It is suitable for laboratories, manufacturing sites, and field testing within these conditions.


    Q: What benefits does the included Windows data acquisition software provide?

    A: The software enables direct data transfer from the device to a Windows PC for real-time monitoring, storing, and advanced analysis of testing data, streamlining workflow and enhancing report generation.


    Q: How does the protection system safeguard the dynamometer during operation?

    A: Built-in overload and over-voltage protection mechanisms prevent damage to the instrument by alerting users to excessive forces or voltage irregularities, ensuring long-term reliability and safety.


    Q: What applications and specimen sizes can this equipment accommodate?

    A: With interchangeable clamps and customizable specimen sizes, this digital dynamometer is ideal for force and pull testing in a wide array of materials and products, supporting tension and compression tests up to 2000 N.
