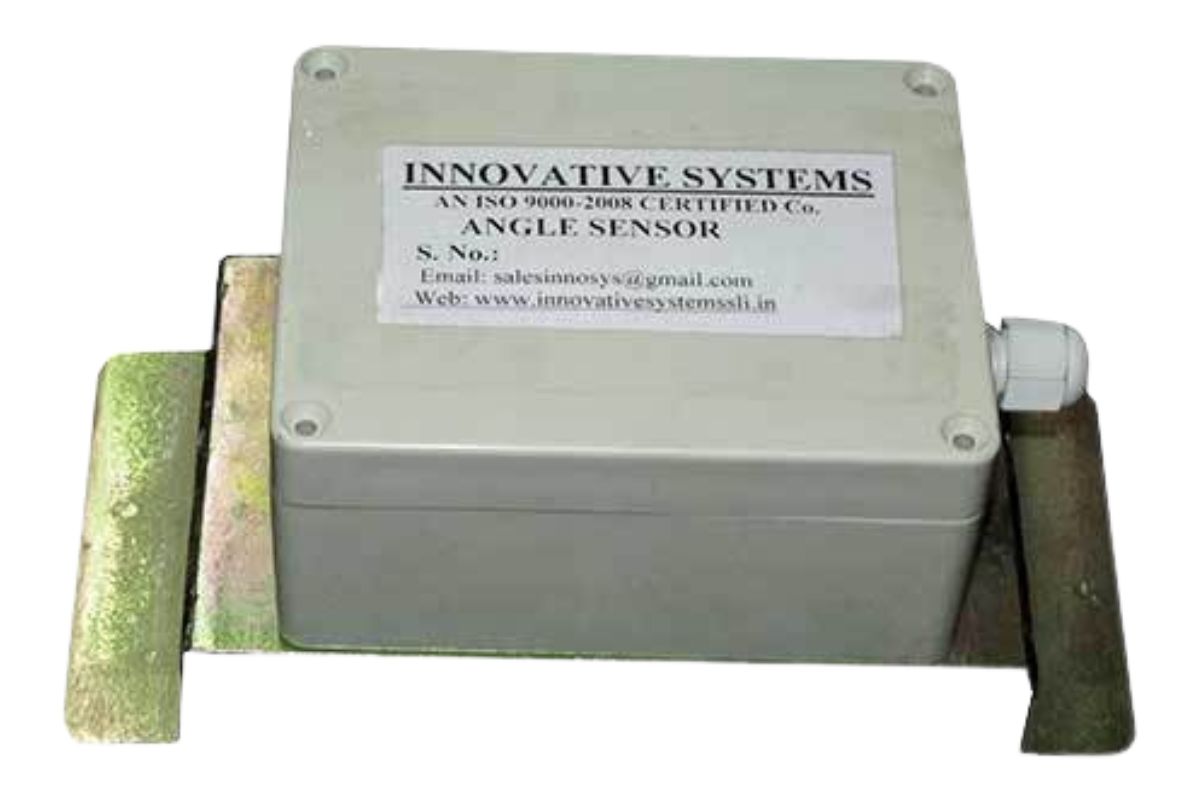

IC-Based Angle Sensor

Innovative Systems offers reliable IC-Based Angle Sensor solutions for accurate angle measurement and position monitoring. Designed for fast response and dependable performance, it provides stable analog output for industrial automation, motion control, and monitoring applications.

Key Features

  • Accurate angle measurement
  • 360° measuring range
  • 0.1° resolution
  • Fast response time
  • Analog voltage output
  • Low maintenance
  • Compact and rugged construction
  • IP67 protection
    • Enquiry Now

    Rugged Construction and Reliable Performance

    Built with an aluminum alloy housing and IP67 protection, the IC-Based Angle Sensor is designed for reliable operation in demanding industrial environments. Its wide operating temperature range of -40°C to +125°C supports stable performance under varying conditions.

    High Precision and Fast Response

    The IC-Based Angle Sensor provides 0.5% FS accuracy and 0.1° resolution for precise angle measurement. With a response time of less than 2 ms, it delivers fast feedback for automation, motion control, and real-time position monitoring systems.

    Easy Integration and Wide Compatibility

    With 5V DC operation, 0.5V to 4.5V analog output, and a 3-wire cable connection, the sensor can be easily integrated with compatible controllers and monitoring systems. Its 0° to 360° measuring range makes it suitable for various angle sensing applications.

    Product Details:

    • Resistance 10 kΩ
    • Output Analog Voltage
    • Theory Hall Sensor IC
    • Type IC-Based Angle Sensor
    • Accuracy 0.5% FS
    • Operating Voltage 5V DC
    • Output Voltage 0.5V to 4.5V

    IC-Based Angle Sensor Product Specifications

    • 0° to 360°
    • 0.1°
    • 0.5% FS
    • Analog Voltage
    • 0.5V to 4.5V
    • 5V DC
    • 10 kΩ
    • <2 ms
    • -40°C to +125°C
    • -20°C to +85°C
    • -55°C to +150°C
    • Hall Sensor IC
    • IP67
    • 3-Wire Cable
    • 45 mm × 20 mm × 12 mm
    • 35 g
    • Aluminum Alloy
    • Industrial Automation, Automotive & Position Monitoring

    FAQs of IC-Based Angle Sensor:


    Q: What is an IC-Based Angle Sensor?

    A: An IC-Based Angle Sensor is an electronic sensing device used to measure angular position and provide a corresponding electrical output for monitoring and control systems.


    Q: What is the measuring range of the sensor?

    A: The sensor provides a 0° to 360° measuring range for continuous angle and position monitoring.


    Q: What output does the IC-Based Angle Sensor provide?

    A: It provides an analog voltage output from 0.5V to 4.5V and operates on a 5V DC supply.


    Q: What are the accuracy and resolution of the sensor?

    A: The sensor provides 0.5% FS accuracy with a resolution of 0.1° for precise angle measurement.


    Q: What is the response time of the sensor?

    A: The sensor offers a response time of less than 2 ms, making it suitable for fast position feedback and automation applications.


    Q: Can the sensor operate in harsh environments?

    A: Yes. Its IP67 protection rating, aluminum alloy housing, and wide operating temperature range support reliable operation in demanding industrial conditions.


    Q: How is the IC-Based Angle Sensor connected?

    A: The sensor uses a 3-wire cable connection and is designed for integration with compatible 5V DC controllers and monitoring systems.


    Q: Where is the IC-Based Angle Sensor used?

    A: It is suitable for industrial automation, automotive systems, motion control, position monitoring, and other applications requiring accurate angle measurement.
