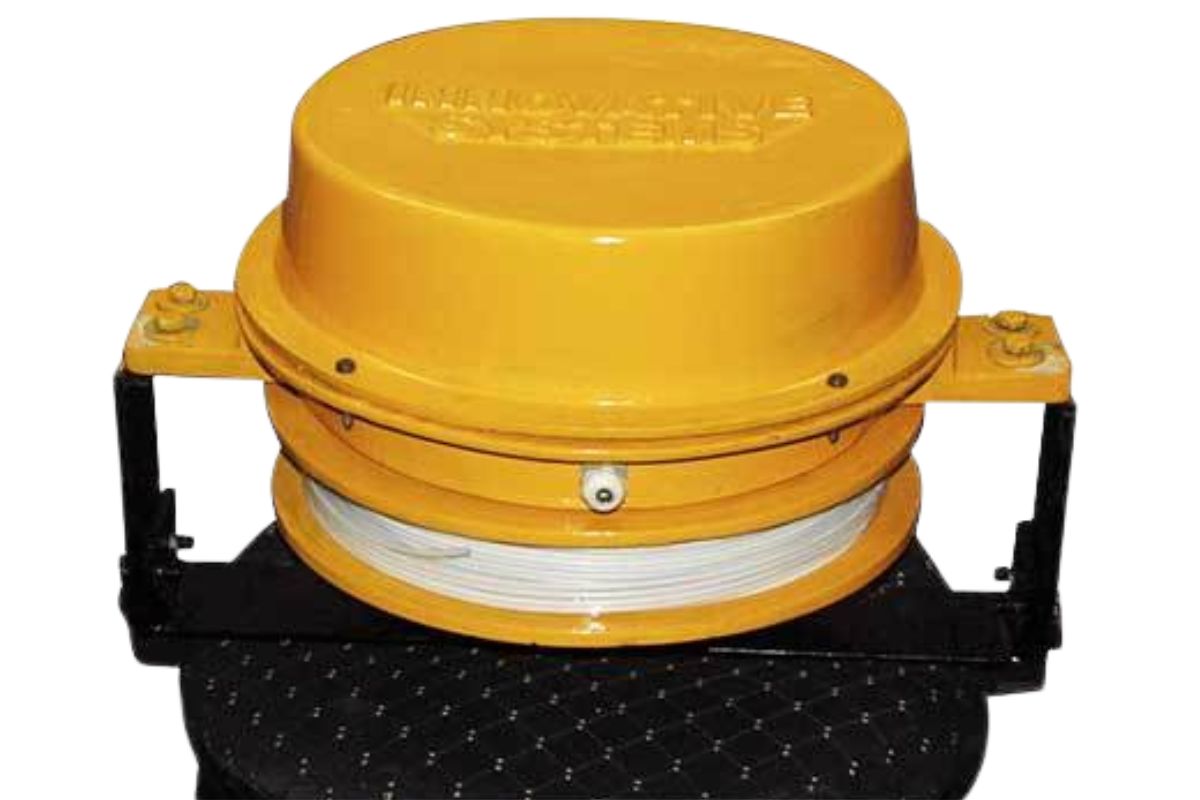

Cable Reeling Drum

Backed by years of industry experience and technical expertise, we manufacture and supply a high-quality range of Cable Reeling Drums designed for the safe handling and management of electrical cables, fiber optic cables, and other wire products. Manufactured using premium-grade raw materials under the supervision of skilled professionals, these drums are available in a variety of sizes and finishes to suit different industrial applications. Their reliable performance, robust construction, and long service life make them a preferred choice among our customers.

Key Features

  • Excellent strength
  • Withstand adverse weather conditions
  • High capability to bear heavy loads
  • Durable finish standards
    • Enquiry Now

    Robust and Customizable Construction

    Manufactured from high-quality sheet metal or steel, the Cable Reeling Drum offers excellent strength and durability for demanding industrial applications. It is available in customizable dimensions and supports cable lengths up to 100 meters. The powder-coated, corrosion-resistant finish enhances its durability, ensuring reliable performance and a long service life even in harsh working environments.

    Advanced Features for Safe and Efficient Operation

    Equipped with spring-operated cable retraction, reliable ball bearing support, and a manual spring locking mechanism, this cable reeling drum ensures smooth and secure cable management. Its overload protection and compliance with IEC/IS standards enhance safety, reliability, and consistent performance in demanding industrial environments.

    Versatile Mounting and Industrial Applications

    Engineered for both horizontal and vertical installation, these Cable Reeling Drums adapt to a wide range of industrial applications. They provide dependable power transmission for mobile equipment, cranes, hoists, and other machinery, with single or multi-directional cable exit configurations to meet different operational requirements.

    Product Details:

    • Cable Type Flexible Trailing Cable
    • Usage & Applications Power supply for mobile machinery and equipment
    • Dielectiric Strength 2.5 kV
    • Conductor Shape Round
    • Number of Conductor 3 to 4
    • Weight 25–60 kg (depending on model)
    • Diameter Up to 32 mm

    Cable Reeling Drum Product Specifications

    • 2.5 kV
    • Round
    • PVC
    • 3 to 4
    • Black
    • Other
    • Black
    • Flexible Trailing Cable
    • Power supply for mobile machinery and equipment
    • 50 Ohm
    • Horizontal/Vertical mounting
    • Standard & customized
    • Cable Reeling Drum
    • Galvanized steel (optional)
    • Up to 32 mm
    • Custom sizes as per requirement
    • 25–60 kg (depending on model)
    • Manual spring lock
    • 3/4/5 Core options
    • Electrolytic copper
    • Spring operated retraction, Robust construction, Weather resistant
    • PVC insulation
    • Up to 100 meters
    • High tensile strength cable
    • Copper
    • Stranded
    • Sheet metal/Steel
    • Copper
    • -10°C to +60°C
    • -10°C to +60°C
    • Other
    • Black or Yellow
    • 220V - 440V
    • -20°C to +60°C
    • Flange or base mounted
    • Customizable based on usage
    • Single & multi-directional
    • IP54 / higher on request
    • Overload protection
    • Pre-tensioned spiral spring
    • Ball bearing supported
    • Powder coated
    • Heavy duty steel / coated for corrosion resistance
    • Fixed and rotating coupling provided
    • IEC/IS standards

    FAQs of Cable Reeling Drum:


    Q: How is the Cable Reeling Drum installed for industrial applications?

    A: The drum can be mounted horizontally or vertically, using either flange or base mounting styles. Its adaptable design and customizable dimensions make installation straightforward for mobile equipment, cranes, and hoists.


    Q: What processes are involved in customizing the cable capacity and drum size?

    A: Customization is managed by specifying cable length, diameter, and core requirements up to 100 meters. Clients may select drum dimensions, reel materials, and cable features to fit particular power supply and management needs.


    Q: When should overload protection be utilized with Cable Reeling Drums?

    A: Overload protection is integral to the drum and should be used whenever the application involves fluctuating loads or critical equipment. This safety feature helps prevent electrical and mechanical damage during heavy-duty operation.


    Q: Where can the Cable Reeling Drum be used effectively?

    A: These drums are optimal for industrial settings, such as powering cranes, hoists, and mobile machinery. Their high durability and weather resistance make them suitable for use both indoors and outdoors.


    Q: What usage benefits does the spring-operated retraction mechanism provide?

    A: Spring-operated retraction ensures effortless and consistent cable winding, reducing manual intervention and enhancing operational safety and efficiency. It supports organized cable management for moving or rotating machinery.


    Q: How does the drum maintain reliable performance in harsh weather conditions?

    A: Its powder-coated, corrosion-resistant steel construction, IP54 rating (or higher), and robust sealing guard against moisture, dust, and temperature fluctuations between -10C and +60C. This ensures reliable operation in demanding environments.


    Q: What electrical and safety standards does the Cable Reeling Drum comply with?

    A: The drum is manufactured as per IEC and IS standards, ensuring high insulation quality, dielectrical strength, and safe operation of power cables rated between 220V and 440V for industrial use.
