Category: Digital Torque Tester

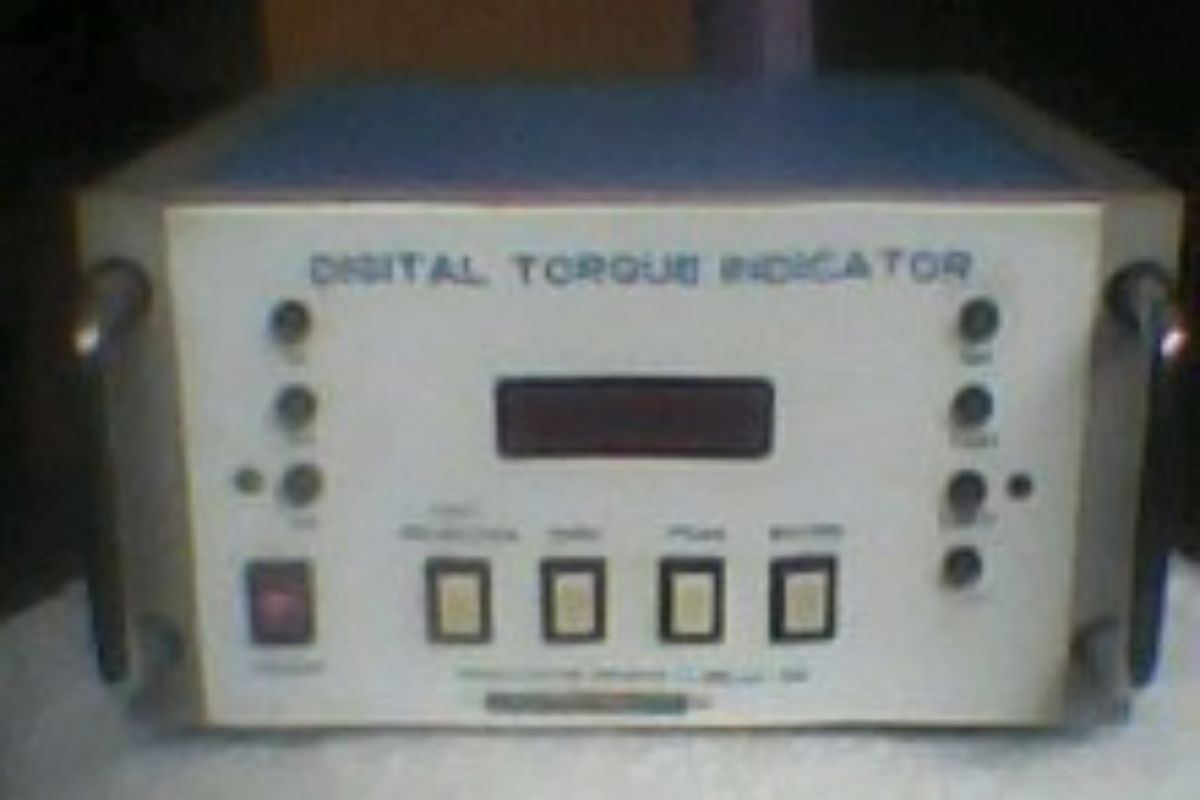

Digital Torque Indicator

We are a trusted manufacturer and supplier of Digital Torque Indicators, designed for accurate measurement and monitoring of torque in applications such as engines, crankshafts, gearboxes, and other rotating equipment. Manufactured using high-quality components and advanced technology, these indicators deliver reliable performance and precise results. Available in various models and technical specifications, they are offered at competitive prices to meet diverse industrial requirements.

Key Features

  • Robust construction
  • Flawless performance
  • Accurate value display
  • Buzzer indicator
    • Enquiry Now

    Precision and Durable Construction

    Built with a rugged powder-coated steel body, this Digital Torque Indicator is designed for dependable performance in both laboratory and industrial environments. Its stable bench-mount design and clear digital LCD ensure accurate, real-time torque readings, while overload protection up to 150% of full scale enhances safety and long-term reliability.

    Advanced Features for Accurate Testing

    The indicator is equipped with peak hold, real-time measurement, and auto-zero functions to support a wide range of testing applications. Programmable high and low alarm limits, adjustable test speed, and built-in memory for up to 200 torque readings ensure precise, efficient, and reliable testing.

    User-Friendly Design and Easy Connectivity

    Designed for ease of use, the torque indicator features simple digital button controls and supports external calibration to maintain measurement accuracy. With CE certification, RS232/USB connectivity, English language support, and an optional battery backup, it offers reliable performance and seamless integration into a wide range of industrial and laboratory applications.

    Product Details:

    • Equipment Type Digital Torque Indicator
    • Measuring Range 0-20 Nm
    • Operating Voltage 230V AC
    • Temperature 0C to 50C
    • Frequency 50 Hz
    • Interface Type RS232/USB
    • Specimen Size Variable, depending on fixture

    Digital Torque Indicator Quantity

    • Externally Calibrated
    • Internal memory for 200 readings
    • Powder-coated Steel
    • Yes, up to 150% of Full Scale
    • Peak/Track
    • CE Marked
    • Nm, kgfcm, lbfin
    • 225 mm x 165 mm x 90 mm
    • Optional, rechargeable
    • Settable upper and lower limits
    • English

    Digital Torque Indicator Product Specifications

    • Single Specimen
    • 0-20 Nm
    • 0.01 Nm
    • 5% to 95% RH, non-condensing
    • <100 ms
    • Bench Mount
    • Digital LCD
    • Approx. 2 kg
    • User-selectable
    • 0.5% of reading
    • Peak Hold, Real Time, Auto Zero
    • Up to 20 Nm
    • Measuring applied torque
    • 230V AC, 50Hz
    • For laboratory and industrial torque measurements
    • 230V AC
    • 0C to 50C
    • 0-20 Nm
    • Digital Torque Indicator
    • Manual
    • Variable, depending on fixture
    • RS232/USB
    • 50 Hz
    • Digital/Button Operated
    • Externally Calibrated
    • Internal memory for 200 readings
    • Powder-coated Steel
    • Yes, up to 150% of Full Scale
    • Peak/Track
    • CE Marked
    • Nm, kgfcm, lbfin
    • 225 mm x 165 mm x 90 mm
    • Optional, rechargeable
    • Settable upper and lower limits
    • English

    FAQs of Digital Torque Indicator:


    Q: How does the overload protection of the Digital Torque Indicator work?

    A: The overload protection feature safeguards the indicator by withstanding applied torque up to 150% of its full-scale range. This function helps ensure the longevity of the instrument and protects against accidental overload during tests.


    Q: What is the calibration process for this torque indicator?

    A: Calibration is performed externally, typically using certified calibration equipment. This process ensures the indicator maintains its high accuracy of 0.5% of reading across its full range. It is recommended to calibrate periodically based on usage frequency and quality requirements.


    Q: When should I utilize the peak and track operating modes?

    A: Use the peak mode to measure and retain the highest torque value recorded during a testideal for assessing maximum applied torque. Track mode, on the other hand, displays real-time torque fluctuation, useful for continuous or dynamic torque applications.


    Q: Where can the Digital Torque Indicator be used effectively?

    A: This indicator is suitable for laboratory as well as industrial settings in India, wherever precise torque measurement is essential. Its robust build and adaptability make it useful in production lines, quality control labs, and research facilities.


    Q: What is the internal data storage capacity and how can I access the saved readings?

    A: The built-in memory stores up to 200 torque readings. You can access these stored values via the digital interface. For further analysis and documentation, the device supports data transfer using RS232 or USB interfaces.


    Q: How is the battery backup feature beneficial for users?

    A: The optional rechargeable battery backup allows operation even during power outages or in areas with unstable electricity, ensuring continuous measurements and improved portability for on-site applications.


    Q: What are the main benefits of using this torque indicator for laboratory and industrial applications?

    A: Key benefits include high accuracy, quick response time, customizable alarm settings, robust construction, multiple display units, and ease of operation. These features collectively ensure reliable, repeatable, and efficient torque measurement in various professional environments.
